Identification module with LED control

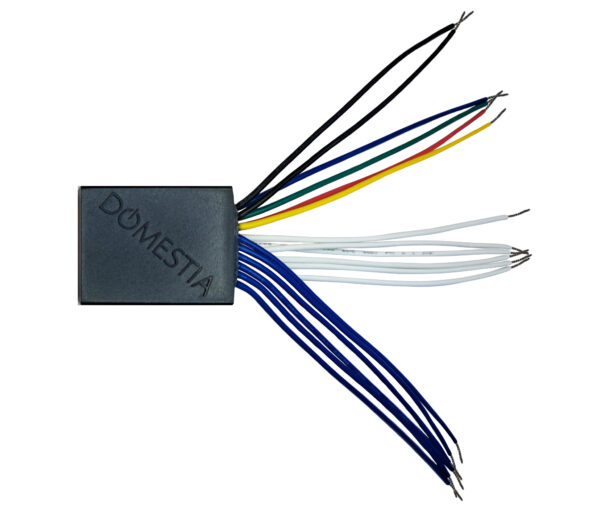

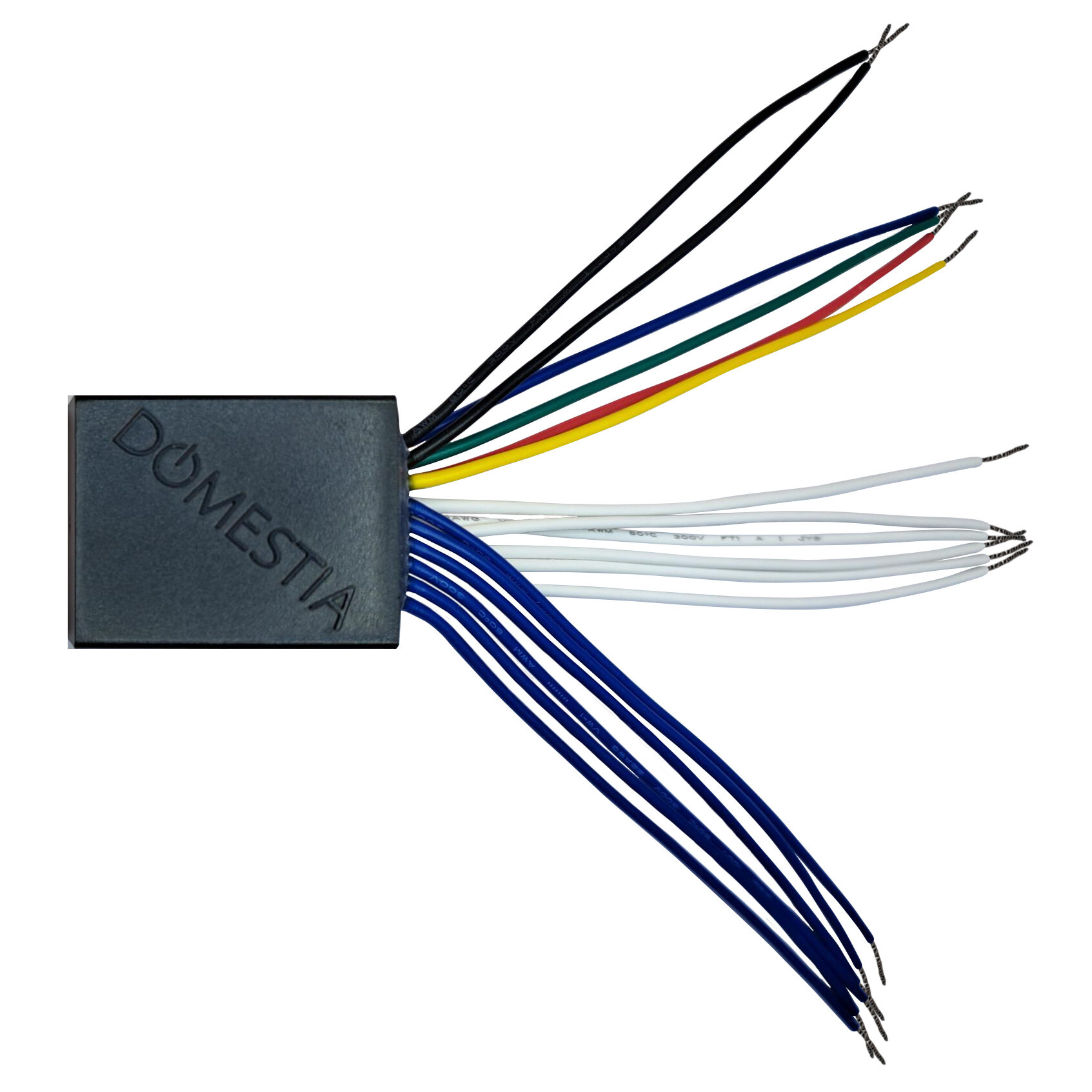

Identification module with LED control DMI-LED-006
Description :
The “DMI-LED-006” module is an identification module with LED intended to be housed in a switch box. A module for connecting 6 push buttons associated with any command. The response from the module is in real time so there is no loss of address.
Possible inputs
– Any brand of push button switch providing a potential-free contact.
– Dusk (signal from astro clock)
– Movement sensor providing a delayed potential-free contact (cessation of the detection for a certain period).
– Alarm providing a potential-free contact during an intrusion. This can light up the whole house for example.
– Any other input providing a potential-free contact.
Installation
The modules can be wired either:
In a bus chain
In a star
Or both simultaneously
* requires a 12V DC power supply
Technical details :
- Maximum voltage of LEDs : DC 12V.
- 2 black wires : non-polarized bus.
- 6 blue wires : dry-contact inputs.
- 1 yellow wire : common to dry contact inputs.
- 1 red wire : LED positive supply.
- 1 black wire : LED negative supply.
- 1 purple wire : RS485 A bus.
- 1 green wire : RS485 B bus.
- 1 red wire : LED positive supply (common
- anodes).
- 6 white wires : 6 LED returns (LED cathodes).
- Size : designed to fir in a deep electrical wall box
