DESIGNED IN BELGIUM

Brightness or humidity sensor

DMCS-001-001

Brightness or humidity sensor

DMCS-001-001

Description

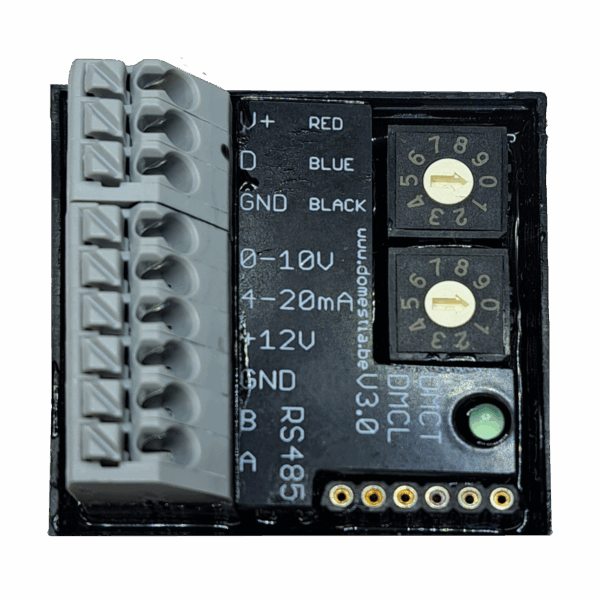

The module “DMCS-001-001” is a temperature sensor, brightness, humidity: it is coupled to our “DME-LAN-002” via the RS485 communication bus (This module is supplied without a brightness / humidity sensor).

This module allows :
• The acquisition of temperature, brightness, humidity in an area.
• Contact management according to user-defined temperatures, brightness, humidity.
• Measurement accuracy of 0.1 ° C.
• Brightness accuracy 1 Lx.
• Humidity level 0.5%



Download instructions

Download technical file




Technical details :

  • Power: 16VDC provided by additional management module DME-LAN-002.
  • Bus de communication : RS485.
  • Size: to be housed in a housing box.
  • Maximum 32 sensors.
